Vittoria Air-Liner Road Tubeless Tyre Insert

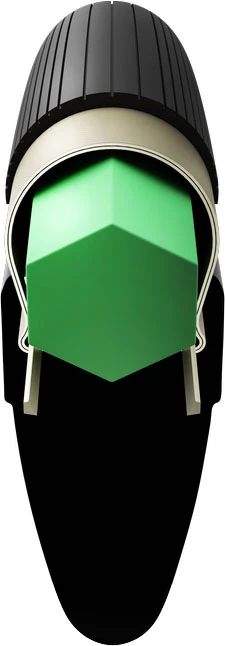

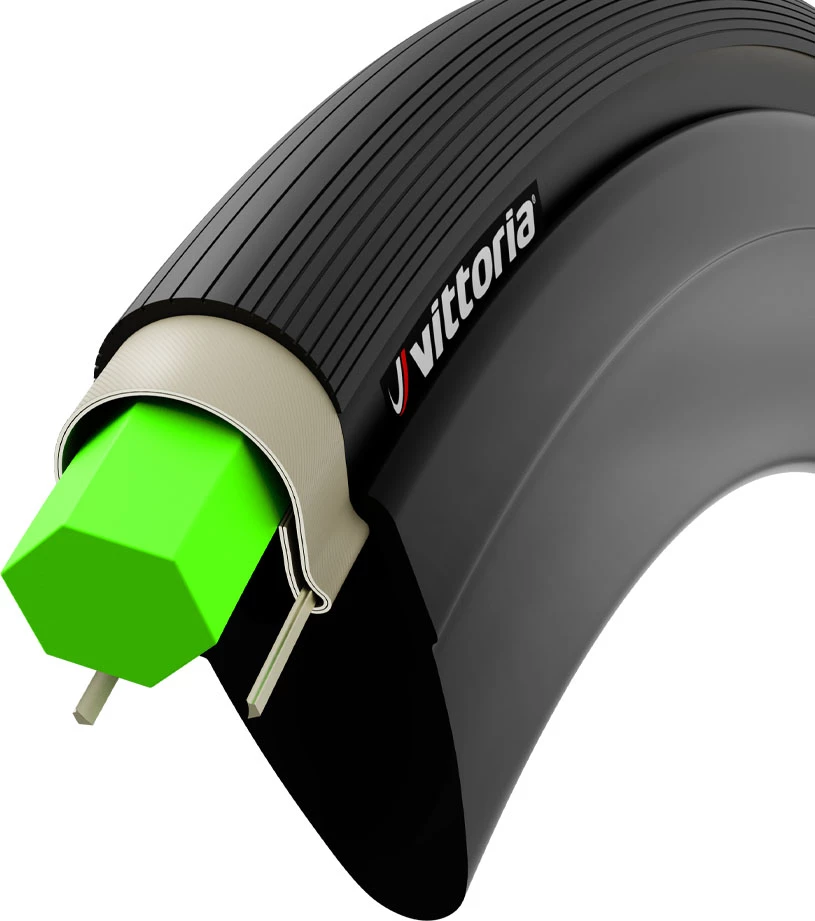

This tubeless tyre insert is a re-useable insert that’s developed especially for road cycling. It’s designed to enhance and optimise the performance and safety of tubeless-ready road bicycle tyres. Air-Liner Road increases the safety of tubeless-ready tyres by locking the bead of the tyre into the rim, reducing the likelihood of burping at the bead. It also cushions the tyre and wheel from impacts, while providing an additional tubeless set-up seal. Unlike the mountain bike and the gravel version, Air-Liner Road uses a complete hoop as well as a hexagonal cross-section shape both of which are designed to lock into a 700c road wheel and provide a very positive bead lock on tubeless tyres.

Insert for Tubeless-Ready Road Tyres

The legendary combination of durability, protection, and run-flat performance of Vittoria Air-Liners, made for your favourite tubeless-ready road tyres. The Vittoria Air-Liner system provides unmatched bump compliance and impact protection while ensuring bead lock at lower pressures.

In the event of air-loss, the Vittoria Air-Liner Road system is designed for run-flat use. The insert increases the safety of your tubeless set-up by keeping the tyre in place even in case of punctures – No risk to ride on the wheels!

The Vittoria Air-Liner Road system is compatible with all tubeless road tyres on the market. The lightweight material absorbs no sealant, while the proprietary Vittoria tubeless valves eliminate valve clogging.

Whether you are training, touring, exploring, or racing, the Vittoria Air-Liner Road Tubeless Tyre Insert will provide peace of mind and protection for the ride ahead.

Sizing and Fitting

Air-Liner Road Size      Tyre Range      Recommended Tyre     Internal Rim Width

S                                   700×23/26mm          25mm                          Max 21 mm

M                                   700×27/29mm         28mm                          Max 23 mm

L                                    700×30/32mm         30mm                          Max 26 mm



Technologies:

– Lightweight protection for all tubeless road tyres.

– Run-flat capability, to always get you back home.

– Vittoria tubeless Multiway Valve included.



Manufacturer’s Part Numbers:

1AA00107 Green S Small
1AA00109 Green M Medium
1AA00110 Green L Large
